6000 Series Deep Groove Ball Bearings

How do 6000 series deep groove ball bearings differ in structure and use compared to 6200 series or 6300 series?

Introduction to Deep Groove Ball Bearings
Deep groove ball bearings are one of the most widely used types of rolling bearings due to their simple structure, smooth operation, and wide applicability. They can bear radial loads as well as light axial loads in both directions. Among them, the 6000 series, 6200 series, and 6300 series are particularly common and often compared by engineers and manufacturers when choosing the appropriate type for mechanical systems. Each series has unique structural characteristics and usage scenarios, which make them suitable for different application fields.

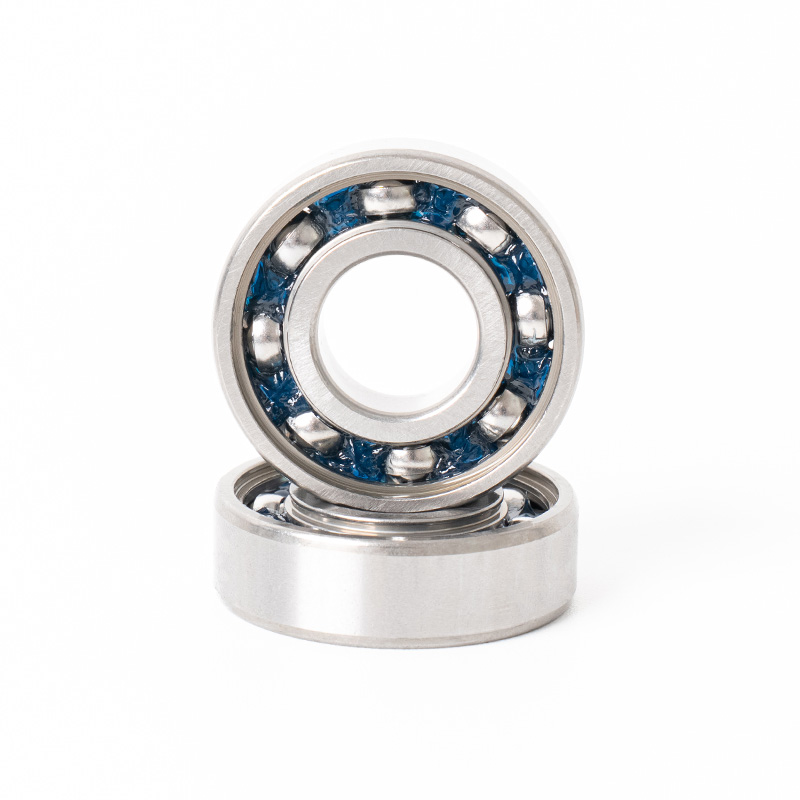

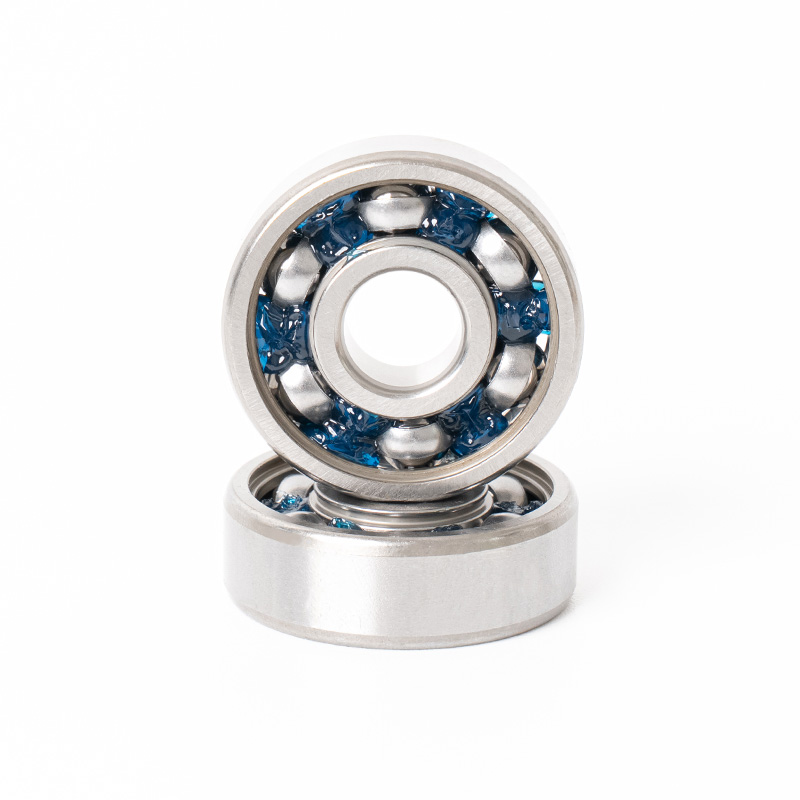

Structural Characteristics of 6000 Series Bearings
6000 series deep groove ball bearings are designed as lightweight bearings with relatively small cross-sectional dimensions. Their main characteristic is compactness, which makes them especially suitable for applications where installation space is limited but high-speed operation is required. The relatively small inner and outer ring cross-sections allow them to reduce friction during operation, achieving lower heat generation and longer service life under proper lubrication. Due to their lighter design, 6000 series bearings are generally not intended for heavy load applications but excel in speed-oriented machinery.

Structural Characteristics of 6200 Series Bearings
Compared to the 6000 series, the 6200 series bearings are more robust and designed to handle higher loads. Their cross-sectional dimensions are larger, providing greater strength in both radial and axial directions. This makes the 6200 series more suitable for equipment that requires both moderate speed and higher load-bearing capacity. They maintain the versatility of deep groove ball bearings but shift toward a more load-focused structural balance.

Structural Characteristics of 6300 Series Bearings
The 6300 series deep groove ball bearings are designed with even larger cross-sections than the 6000 or 6200 series. They are significantly stronger in load capacity, particularly for heavy radial loads. However, due to their larger structure, they are less suitable for high-speed applications compared to the 6000 series. Instead, they find greater use in machinery that demands durability and the ability to withstand heavier working conditions, such as heavy-duty motors, industrial gearboxes, and equipment in the textile and transport industries.

Comparison of Structural Dimensions

Differences in Load-Bearing Capabilities
The 6000 series bearings are primarily suited for lighter applications due to their compact structure. They can efficiently manage radial loads and small axial loads but are not designed for heavy-duty machinery. In contrast, the 6200 series bridges the gap between light and heavy applications, providing a balance between speed and load capacity. The 6300 series excels in handling heavy radial loads but sacrifices high-speed adaptability. These differences determine the selection process in mechanical design, as engineers must evaluate both the load and speed requirements of the machinery.

Differences in Speed Performance
High-speed performance is a defining characteristic of the 6000 series. Their reduced cross-section and lightweight design mean they generate less friction and heat during operation. This makes them especially reliable in high-speed applications such as micro-motors, small fans, and household appliances. The 6200 series provides moderate speed capabilities while still managing higher loads, whereas the 6300 series is less efficient in high-speed conditions due to its larger rolling elements and greater internal friction.

Performance Indicators

Application Scenarios of 6000 Series Bearings
The 6000 series is commonly used in micro-motors, communication devices, household appliances, and other compact machinery. These bearings are favored for their efficiency and low noise operation. NINGBO YIFENG BEARING CO., LTD., as a professional enterprise in this field, produces large volumes of such miniature bearings. Their products are widely adopted in industries requiring precise and high-speed performance, including medical equipment, sports devices, and textile machinery. With an annual production capacity of 25 million sets, the company ensures that the 6000 series is available to meet large-scale industrial demands.

Application Scenarios of 6200 Series Bearings
The 6200 series is more common in equipment where load-bearing capability is critical but compactness remains important. They are often found in power tools, small automotive components, and larger household appliances. Their balance between load and speed makes them a versatile option for engineers seeking reliability without oversizing the bearing.

Application Scenarios of 6300 Series Bearings
The 6300 series finds its niche in heavy-duty machinery. These bearings are widely used in industrial environments such as gearboxes, textile machines, and transport equipment. They provide the necessary strength and reliability for systems exposed to continuous heavy loads, ensuring that the machinery remains functional under demanding conditions.

Application Suitability

Role of NINGBO YIFENG BEARING CO., LTD. in Series Production
NINGBO YIFENG BEARING CO., LTD. plays an important role in the production of small and medium-sized bearings. With advanced microcomputer step control technology, automated production lines, and strong testing capabilities, the company ensures precision and consistency in its 6000 series products. By covering an extensive range of structural types within this series, it provides bearings adaptable to different environmental needs, including open-type, sealed, or shielded versions. This technical strength helps the company supply industries with reliable bearings that match specific operating requirements.

Considerations in Bearing Selection
When choosing between the 6000, 6200, and 6300 series, engineers must evaluate parameters such as available installation space, required speed, and expected load conditions. A compact and speed-focused design like the 6000 series is ideal for lightweight systems, while the 6200 series serves as a middle-ground solution. For high-load environments, the 6300 series remains the preferred option. The decision-making process also involves considering lubrication requirements, operational noise levels, and expected service life, all of which differ between the three series.
