What is the difference between deep groove ball bearings and angular contact ball bearings?

Introduction to Bearing Types
Bearings play a vital role in mechanical systems by reducing friction, supporting loads, and ensuring smooth rotational motion. Among the wide range of bearings, deep groove ball bearings and angular contact ball bearings are two of the most commonly used categories. While they both employ rolling elements and a similar fundamental design, they are engineered for different load directions, performance levels, and applications. Understanding their differences is essential for selecting the correct bearing in industrial and consumer applications.

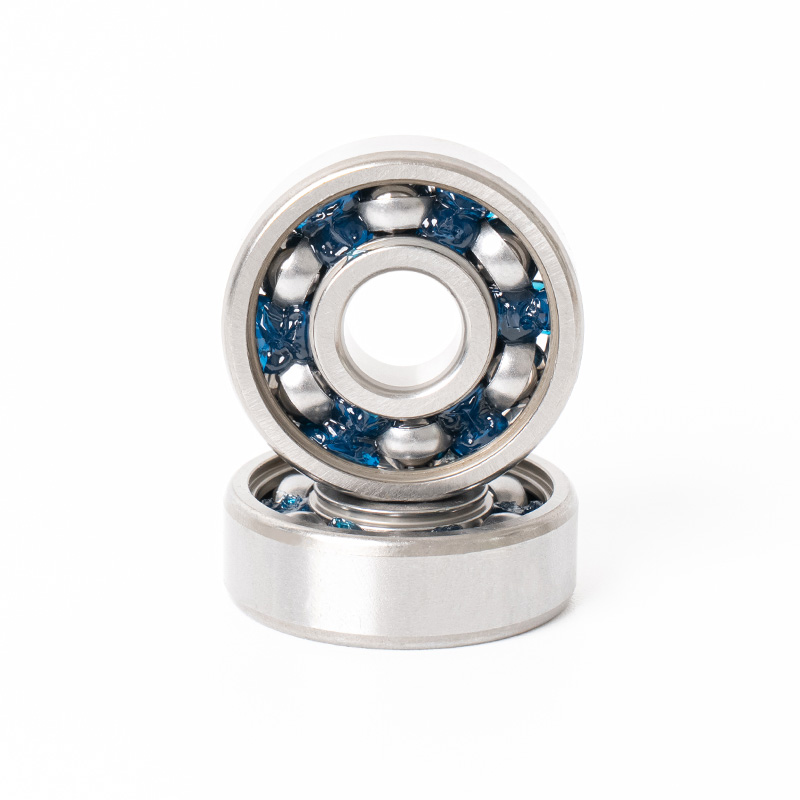

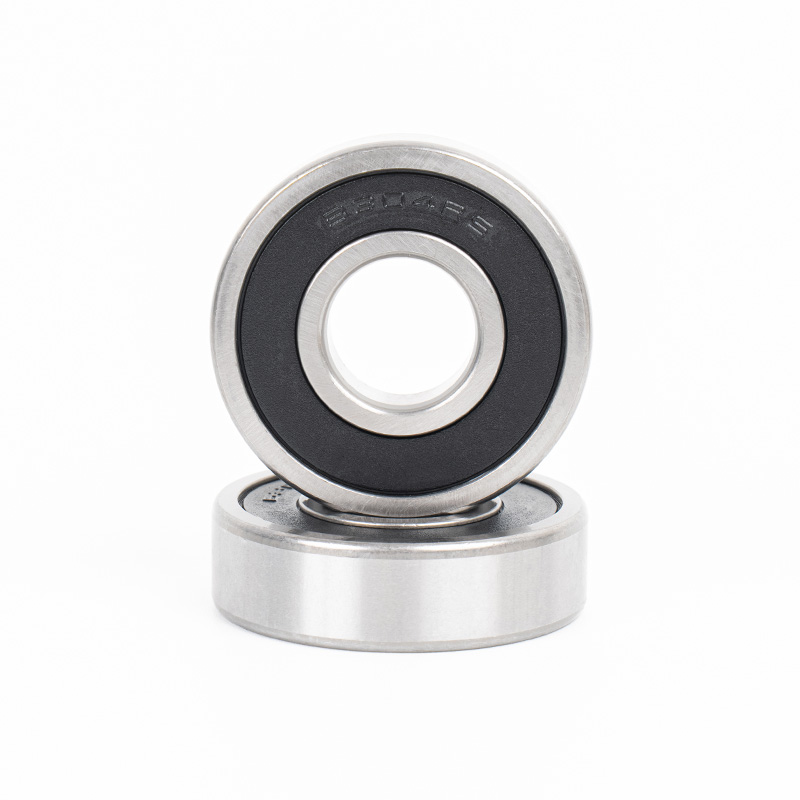

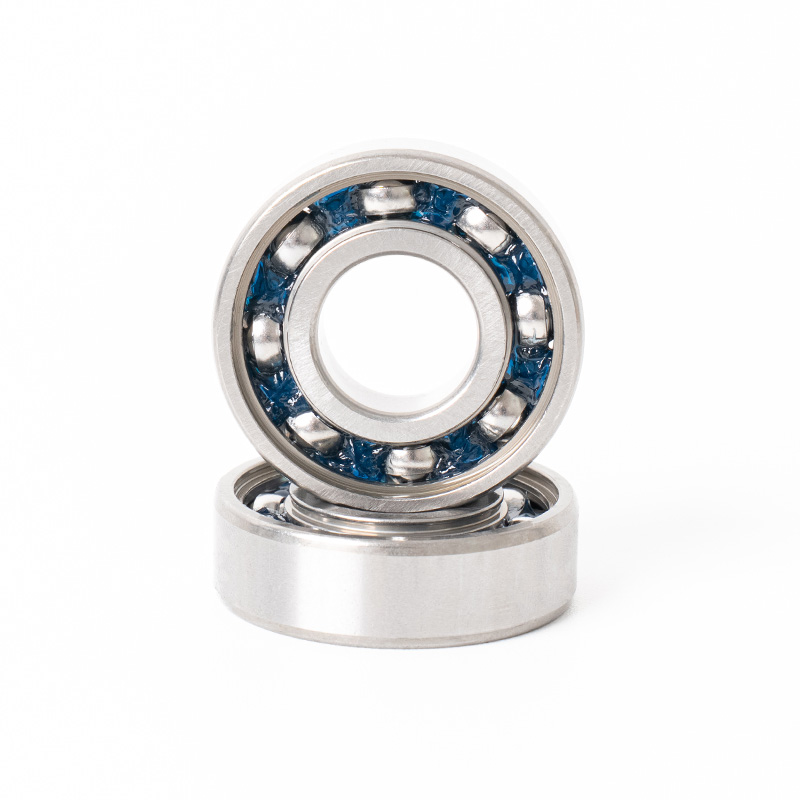

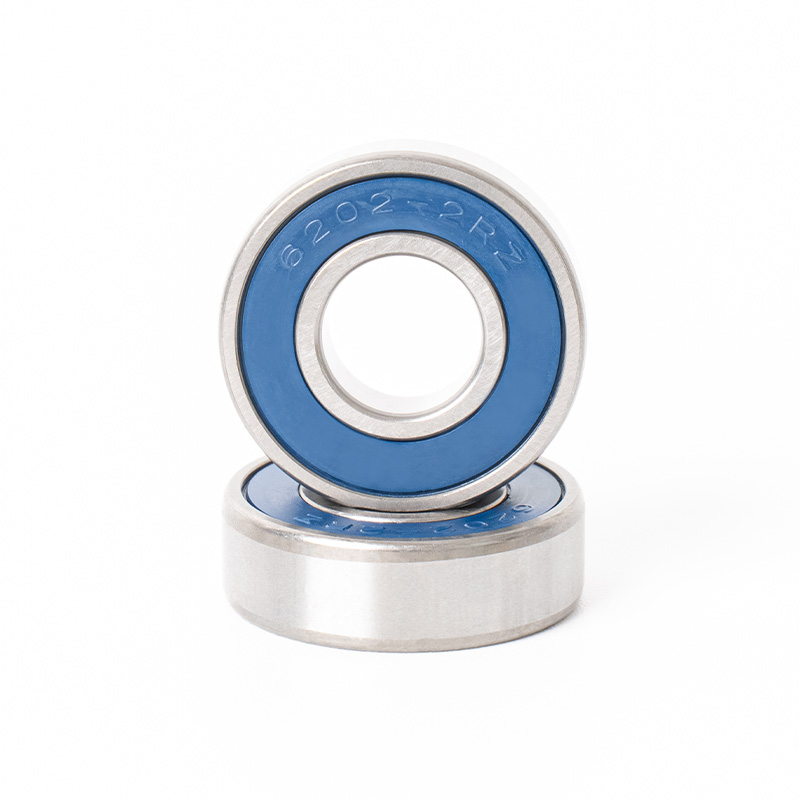

Overview of Deep Groove Ball Bearings
Deep groove ball bearings are characterized by their simple design, where the raceway of both the inner and outer rings forms a continuous deep groove. This structure allows them to accommodate both radial and limited axial loads in both directions. They are widely recognized for their versatility, relatively low cost, and ability to run at high speeds with minimal noise and vibration.
NINGBO YIFENG BEARING CO., LTD. specializes in the production of small and medium-sized deep groove ball bearings. With advanced microcomputer step-control production lines and a capacity of 25 million sets annually, the company ensures consistent quality that meets the needs of industries such as household appliances, micro-motors, communication equipment, and textile machinery.

Overview of Angular Contact Ball Bearings
Angular contact ball bearings differ from deep groove ball bearings in terms of raceway geometry. The inner and outer ring raceways are displaced relative to each other, which enables them to support axial loads in one direction in addition to radial loads. These bearings are especially designed to handle combined loads and high-speed applications where rigidity is required. By using pairs of angular contact bearings in specific configurations, machines can achieve greater stability and load distribution.

Structural Differences
The structural difference between the two types of bearings is fundamental. Deep groove ball bearings have uninterrupted grooves, which makes them simpler in design. Angular contact ball bearings, on the other hand, have angled contact points between the balls and raceways, which directly influences their load-handling ability.

Load Capacity Comparison
Load-bearing capability is one of the most important differentiating factors. Deep groove ball bearings can handle primarily radial loads and limited axial loads, making them suitable for general-purpose use. Angular contact ball bearings are better suited for applications requiring high axial load capacity, especially when combined with radial loads.

Speed Performance
Deep groove ball bearings are designed to operate at higher speeds with minimal friction and low noise levels. Angular contact ball bearings can also achieve high speeds, but their performance depends on the contact angle and lubrication. For ultra-high-speed applications requiring rigidity, angular contact ball bearings are often the preferred choice.

Application Fields
The choice between these two types depends largely on the application requirements. Deep groove ball bearings are used extensively in electric motors, small appliances, and general machinery. Angular contact ball bearings are found in high-performance systems where combined loads are common, such as turbines, gearboxes, and robotics.

Maintenance and Durability
Both types require proper lubrication and maintenance for longevity. Deep groove ball bearings are generally easier to maintain due to their simpler structure. Angular contact ball bearings, with their higher load capacities, may experience more stress and require closer attention during installation and use to avoid misalignment and premature wear.

Cost Considerations
Cost is another key difference. Deep groove ball bearings are generally more affordable because of their straightforward structure and mass production. Angular contact ball bearings are more expensive due to their complex geometry, precision manufacturing, and specialized application.

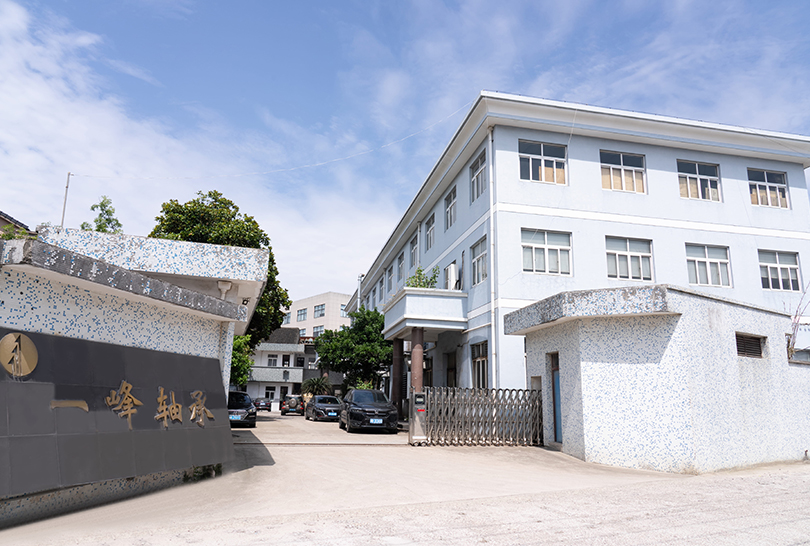

Role of NINGBO YIFENG BEARING CO., LTD.
As a professional enterprise focusing on small and medium-sized deep groove ball bearings, NINGBO YIFENG BEARING CO., LTD. plays an important role in supplying industries where these bearings are the most suitable. With over 200 employees, advanced equipment, and precision testing laboratories, the company guarantees consistent quality, ensuring its products meet international standards. Its specialization allows it to provide cost-effective, reliable, and durable deep groove ball bearings for global markets.

Selection Guidelines for Engineers
When selecting bearings, engineers must consider several factors: load type, operating speed, required precision, cost, and maintenance. For systems where the primary requirement is radial load support with occasional axial loads, deep groove ball bearings are sufficient. For precision systems requiring high rigidity and combined load handling, angular contact ball bearings are more appropriate.
